Products

Home > Products > Dust Wiper Seals > 130-09-12960 1300912960 SEAL,DUST OF D57S-1 D57S-1B

130-09-12960 1300912960 SEAL,DUST OF D57S-1 D57S-1B

Name: 130-09-12960 1300912960 SEAL,DUST OF D57S-1 D57S-1B
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 130-09-12960
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 130-09-12960

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Dust Wiper Seal for D57S-1, D57S-1B Dust Wiper Seal, Dust Seal with Warranty


Part No.::	130-09-12960	Part Name::	DUST SEAL
Machine:	Bulldozer	Material:	NBR
Color:	WHITE	Model:	D57S-1B

Part No.::	130-09-12960
Part Name::	DUST SEAL
Machine:	Bulldozer
Material:	NBR
Color:	WHITE
Model:	D57S-1B

Product Description

1. Quick Details of seal 130-09-12960:

Part NO.	130-09-12960
Machine	Bulldozer
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 130-09-12960 parts on group :

130-09-12960 1300912960 SEAL,DUST OF D57S-1 D57S-1B

NO.	PART NO.	PRAT NAME	QTY
2	135-70-32160	BUSHING	2
3	135-70-32280	BUSHING	2
4	135-70-32170	BUSHING	2
5	130-09-12960	SEAL,DUST	4
6	135-70-32290	SEAL,DUST	4
7	140-09-12510	SEAL,DUST	4
8	09241-75185	PIN	2
9	07020-00000	FITTING,GREASE	2
10	135-70-32180	SPACER¤ 1.6MM	4
	135-70-32190	SPACER¤ 3.2MM	2
11	04082-00514	LOCK	2
12	01010-51435	BOLT	4
13	01602-21442	WASHER,SPRING	4
14	135-70-32360	LEVER,L.H.	1
	135-70-32370	LEVER,R.H.	1
15	09241-60170	PIN	2
16	135-70-32261	PIN	2
17	135-70-32380	PIN,L.H.	1
	135-70-32390	PIN,R.H.	1
18	07020-00000	FITTING,GREASE	6
19	04082-00212	LOCK	2
20	01010-31225	BOLT	4
21	01010-51230	BOLT	4
22	01602-21236	WASHER,SPRING	8
23	135-70-32250	BOLT	2
24	01598-01214	NUT	2
	135-70-00230	TILT ROD ASSEMBLY	2
26	131-70-42560	BUSHING	2
27	140-09-12510	SEAL,DUST	8
	135-Z23-0030	TILT ROD ASSEMBLY,L.H.(FOR MULTI PURPOSE BUCKET)	1
29	09245-50060	HOOK,(FOR MULTI PURPOSE BUCKET)	1
30	131-70-42560	BUSHING,(FOR MULTI PURPOSE BUCKET)	2
	135-70-00230	TILT ROD ASSEMBLY,R.H.(FOR MULTI PURPOSE BUCKET)	1
32	131-70-42560	BUSHING,(FOR MULTI PURPOSE BUCKET)	2

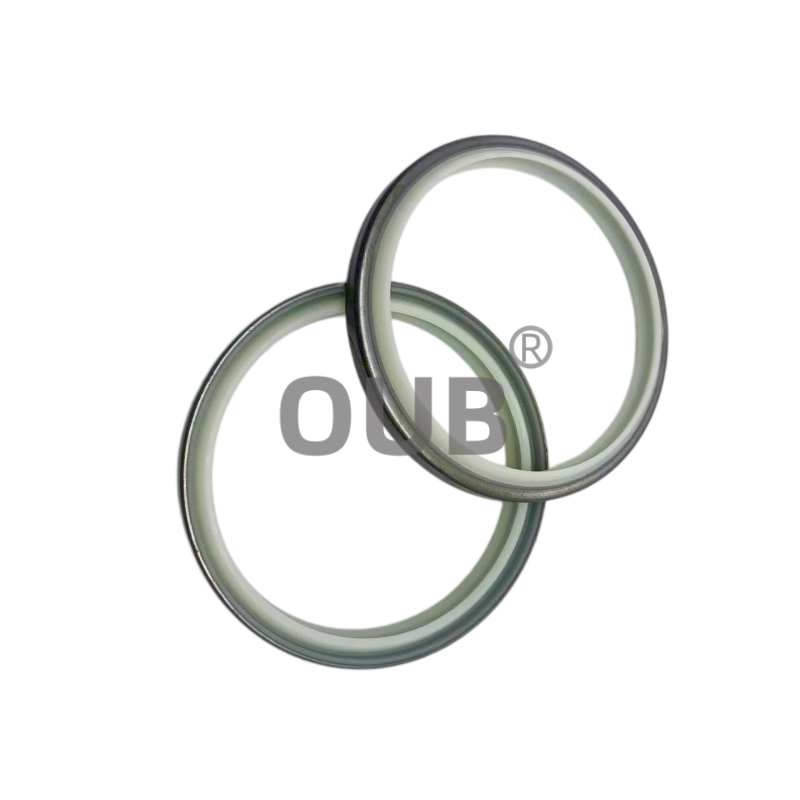

3. 130-09-12960 picture:

130-09-12960 1300912960 SEAL,DUST OF D57S-1 D57S-1B
4. Service part number :

PART NO.	PART NO.	Part NO.
3K-0360	6V1454	7F8268
6V3917	4J2506	3H-0107
2S8439	1038254	5P8940
5H6733	190-7674	6D1355
2701820	5F9144	951719
6V6609	8M4992	4I5849

5. FAQ

Q: Which heavy-duty construction machine can part number 130-09-12960 fit?
A: The part number 130-09-12960 is a dust seal designed for bulldozer hydraulic cylinder rod assembly.

Q: What product category does part 130-09-12960 fall into?
A: Part 130-09-12960 belongs to dust seal category, which acts as the outermost scraper for hydraulic piston rod.

Q: What materials are used to produce this dust seal?
A: It is constructed from NBR rubber combined with metal shell, keeping structural rigidity under heavy vibration.

Q: What is the core function of this dust seal?
A: Its sharp scraping lip clears dirt, fine gravel and mud off the piston rod before it retracts into cylinder.

Q: Where is this dust seal installed on the bulldozer hydraulic cylinder?
A: It is pressed into the outermost groove of cylinder gland, facing the exposed side of piston rod.

Q: What unique performance features does this dust seal have?
A: It maintains flexible lip elasticity and offers good anti-aging performance under outdoor changing climate.

Q: Does this dust seal undertake the task of preventing hydraulic oil leakage?
A: No, it only blocks external contaminants. The inner rod seal is responsible for hydraulic oil sealing.

Q: What negative impacts will happen if this dust seal wears or cracks?
A: Hard particles will enter the cylinder assembly, scratch piston rod surface and speed up inner seal aging.

6. Exhibition and Wearhous
