411-46-12230 4114612230 SEAL OF WF22A-2 WF22T-2

Name: 411-46-12230 4114612230 SEAL OF WF22A-2 WF22T-2
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 411-46-12230
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 411-46-12230

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                WF22A-2 dust wiper seal, WF22T-2 hydraulic seal, dust wiper seal replacement


Part No.::	411-46-12230	Model:	WF22T-2
Part Name::	DUST SEAL	Machine:	Wheel Loader
Material:	NBR	Color:	WHITE

Part No.::	411-46-12230
Model:	WF22T-2
Part Name::	DUST SEAL
Machine:	Wheel Loader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 411-46-12230:

Part NO.	411-46-12230
Machine	Wheel Loader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 411-46-12230 parts on group :

411-46-12230 4114612230 SEAL OF WF22A-2 WF22T-2

NO.	PART NO.	PRAT NAME	QTY
1	410-46-12112	FRAME,MAIN	1
2	411-46-12210	BEARING	1
3	411-46-12220	RETAINER	1
4	411-46-12230	SEAL	2
5	411-46-12240	RETAINER	1
6	411-46-12260	SHIM	10
7	411-46-12270	SPACER	1
8	411-46-12280	SPACER	1
9	411-46-12311	PIN	1
10	411-46-12320	SHIM	10
11	411-46-12341	COVER	1
12	07020-00000	FITTING	1
13	01051-31410	BOLT	9
14	01582-11411	NUT	9
15	01602-21442	WASHER	9
16	07000-03080	O-RING	1
17	01050-31435	BOLT	6
18	411-46-11370	WASHER	3
19	01010-52045	BOLT	3
20	01602-52060	WASHER	3
21	06000-22316	BEARING	1
22	411-46-12410	RETAINER	1
23	411-46-12420	SEAL	2
24	411-46-12430	RETAINER	1
25	411-46-12260	SHIM	10
26	411-46-12511	PIN	1
27	07020-00000	FITTING	1
28	01050-31490	BOLT	9
29	01582-11411	NUT	9
30	01602-21442	WASHER	9
31	04082-00412	LOCK	1
32	01010-51230	BOLT	2
33	01602-21236	WASHER	2
34	09242-45140	PIN	1
35	09249-00016	LATCH	1
36	01052-51260	BOLT	1
37	01592-11215	NUT	1
38	04050-03022	PIN	1
39	411-46-13114	SUPPORT	1
39	411-46-13113	SUPPORT	1
40	07020-00000	FITTING	1
41	01011-83060	BOLT	8
41	01011-83060	BOLT	4
42	01580-13024	NUT	8
42	01580-13024	NUT	4
42A	01643-33080	WASHER	8
42A	01601-23075	WASHER	4
43	411-46-13123	BUSHING	1
44	411-46-13132	SEAL	2
45	411-46-13150	SPACER	1
46	411-46-13160	PLATE	1
47	411-46-13241	COVER	1
48	01010-51430	BOLT	12
49	01602-21442	WASHER	12
50	411-46-13212	SUPPORT	1
50	411-46-13211	SUPPORT	1
51	01011-83060	BOLT	8
51	01011-83060	BOLT	4
52	01580-13024	NUT	8
52	01580-13024	NUT	4
52A	01643-33080	WASHER	8
52A	01601-23075	WASHER	4
53	07020-00000	FITTING	1
54	411-46-13221	BUSHING	2
55	411-46-13230	SEAL	2
56	411-46-14110	BRACKET	1
57	411-46-14120	BRACKET	1
58	01010-51225	BOLT	7
59	01602-21236	WASHER	7
60	01643-21232	WASHER	7
63	01010-51045	BOLT	2
64	01602-21030	WASHER	2
65	256-46-11410	JOINT	2
66	07020-00675	FITTING	2
67	256-46-11441	TUBE	1
67	256-46-11440	TUBE	1
68	485-44-11640	RING	6
69	256-46-11450	JOINT	3
70	256-46-11460	ELBOW	3
71	01010-50816	BOLT	2
72	01602-20825	WASHER	2
73	04434-00808	CLIP	2
74	256-46-11421	TUBE	1
74	256-46-11420	TUBE	1
75	256-46-11431	TUBE	1
75	256-46-11430	TUBE	1
76	256-03-11420	CUSHION	2
76	256-03-11420	CUSHION	2
76	256-03-11420	CUSHION	2
77	256-03-11410	CUSHION	1
77	256-03-11410	CUSHION	1
77	256-03-11410	CUSHION	1

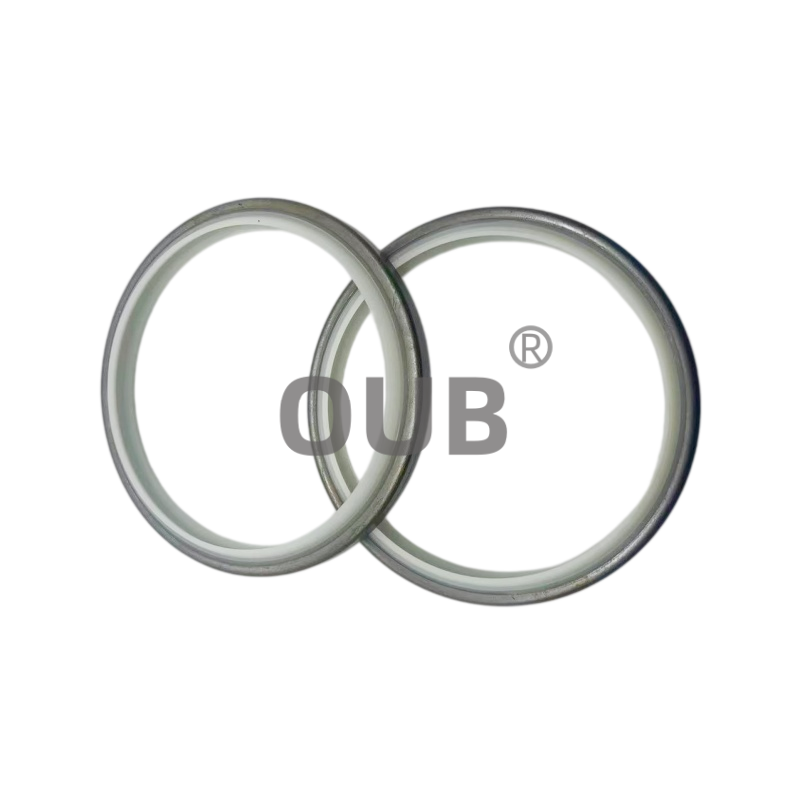

3. 411-46-12230 picture:

411-46-12230 4114612230 SEAL OF WF22A-2 WF22T-2
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-98-26820	707-98-39611	707-98-67100
707-98-26570	707-98-26550	707-98-37690
707-98-26620	707-98-26560	707-98-38500
707-98-26720	707-98-26570	707-98-38510
707-98-26820	707-98-39611	707-99-64250
707-98-26570	707-98-38510	707-98-38520

5. FAQ

Q: Which construction equipment uses dust seal part number 411-46-12230?
A: The dust seal 411-46-12230 is designed for wheel loader hydraulic cylinder repair and replacement.

Q: What materials are used to manufacture dust seal part 411-46-12230?
A: 411-46-12230 dust seal adopts high-strength polyurethane lip paired with elastic NBR rubber body.

Q: What is the main working principle of this dust seal?
A: Its sharp lip scrapes dust and mud from piston rod before contaminants enter the cylinder interior.

Q: Where is this dust seal mounted on the wheel loader hydraulic cylinder?
A: It is installed inside the cylinder gland at the outer port of the extending piston rod.

Q: What advantages does this dust seal have for loading operations?
A: It features outstanding wear resistance and keeps stable scraping performance under frequent rod movement.

Q: What will happen if this dust seal gets damaged during operation?
A: Dust and sediment will go inside and speed up abrasion of rod seal and cylinder inner components.

Q: Can this dust seal be used for multiple different wheel loader cylinder specifications?
A: It matches designated wheel loader models, please verify cylinder dimensions before placing orders.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
