561-50-62370 5615062370 SEAL OF HD985-5 HD785-3

Name: 561-50-62370 5615062370 SEAL OF HD985-5 HD785-3
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 561-50-62370
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 561-50-62370

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Dust wiper seal for HD985-5, Dust wiper seal for HD785-3, Heavy equipment dust wiper seal


Part No.::	561-50-62370	Model:	HD785-5LC
Part Name::	DUST SEAL	Machine:	Motor Grader
Material:	NBR	Color:	WHITE

Part No.::	561-50-62370
Model:	HD785-5LC
Part Name::	DUST SEAL
Machine:	Motor Grader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 561-50-62370:

Part NO.	561-50-62370
Machine	Motor Grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 561-50-62370 parts on group :

561-50-62370 5615062370 SEAL OF HD985-5 HD785-3

NO.	PART NO.	PRAT NAME	QTY
1	561-92-62310	CYLINDER	2
2	561-50-6B130	ROD	2
3	561-50-6A130	RETAINER	2
4	561-50-6A150	FLANGE	2
5	568-50-11330	BUSHING	2
6	01011-31400	BOLT	32
	01011-61400	BOLT	32
7	01602-21442	WASHER	32
8	07000-15240	O-RING	2
9	07001-05240	RING	2
10	568-50-12180	RING	2
11	568-50-11290	U-PACKING	2
12	561-50-62370	SEAL	2
	566-50-11301	VALVE ASSEMBLY	2
13	566-50-11320	VALVE	2
14	281-50-11721	CORE	2
15	566-50-11340	CAP	2
16	07000-11006	O-RING	2
	07000-01006	O-RING	2
17	566-50-11350	PACKING	2
18	561-92-62340	GUARD	2
19	566-09-6A120	CLAMP	2
20	561-92-62330	GUARD	2
21	01010-81020	BOLT	4
22	01643-31032	WASHER	4
23	568-50-11230	BUSHING	2
24	561-50-62310	BUSHING	4
25	04071-00130	RING	8
26	07000-12080	O-RING	8
	07000-02080	O-RING	8
27	561-86-67500	VALVE ASSEMBLY	2
28	566-50-11350	PACKING	2

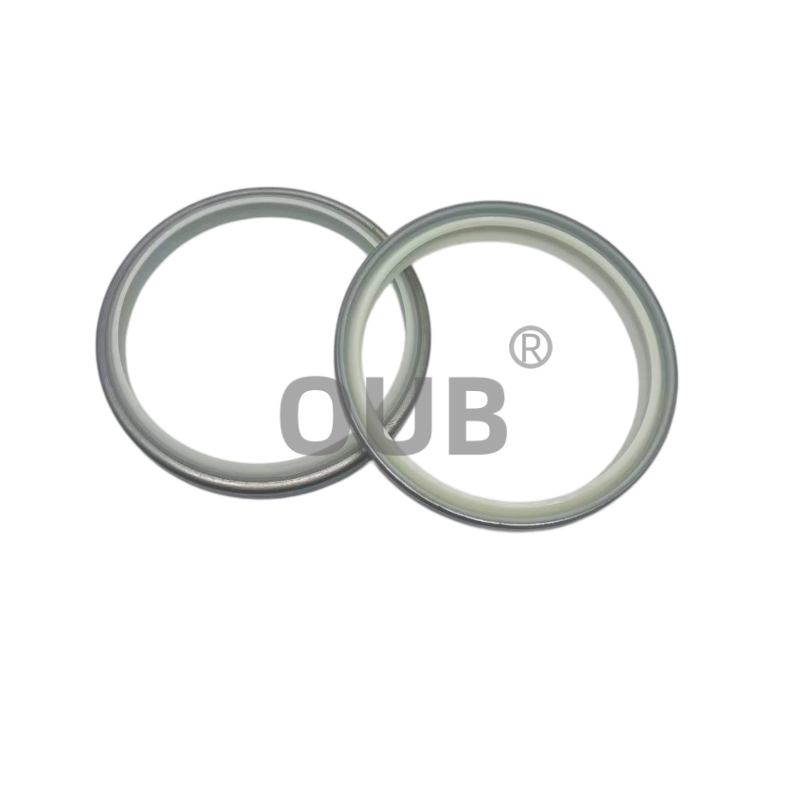

3. 561-50-62370 picture:

561-50-62370 5615062370 SEAL OF HD985-5 HD785-3
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-98-26820	707-98-39611	707-98-67100
707-98-26570	707-98-38520	707-98-64410
707-98-26620	707-98-26600	707-98-38551
707-98-26720	707-98-26620	707-98-38600
707-98-26820	707-98-26720	707-98-39610

5. FAQ

Q: What kind of construction machine does dust seal part number 561-50-62370 fit for?
A: The dust seal 561-50-62370 is manufactured for motor grader hydraulic cylinder repair and replacement.

Q: What raw materials are used to produce dust seal part 561-50-62370?
A: 561-50-62370 dust seal adopts high tenacity polyurethane scraping lip and flexible NBR rubber base.

Q: What is the main task of this dust seal during grader operation?
A: It scrapes road dust, gravel powder and muddy slurry off the piston rod as the rod retracts inward.

Q: Where is this dust seal installed on the motor grader hydraulic cylinder?
A: It is seated inside the cylinder gland at the outer opening where the piston rod extends outward.

Q: What performance benefit does this dust seal bring for road grading work?
A: It maintains consistent scraping force under continuous vibration from cutting blade adjustment.

Q: What problem may occur if this dust seal gets worn out?
A: Abrasive particles will penetrate inside the cylinder and wear down the inner rod seal and sliding surfaces.

Q: Do we need to replace other seals when changing this dust seal?
A: It is recommended to inspect all adjacent sealing components during cylinder overhaul for best performance.

Q: What signs indicate that this dust seal needs to be replaced immediately?
A: Watch for lip cracking, loss of elasticity or accumulated mud stuck on the piston rod surface.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
