566-50-11210 5665011210 SEAL OF HD325-5 HD320-2

Name: 566-50-11210 5665011210 SEAL OF HD325-5 HD320-2
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 566-50-11210
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 566-50-11210

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HD325-5 dust wiper seal, HD320-2 dust wiper seal, Komatsu dust wiper seal


Part No.::	566-50-11210	Model:	HD320-3
Part Name::	DUST SEAL	Machine:	Motor Grader
Material:	NBR	Color:	WHITE

Part No.::	566-50-11210
Model:	HD320-3
Part Name::	DUST SEAL
Machine:	Motor Grader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 566-50-11210:

Part NO.	566-50-11210
Machine	Motor Grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 566-50-11210 parts on group :

566-50-11210 5665011210 SEAL OF HD325-5 HD320-2

NO.	PART NO.	PRAT NAME	QTY
1	566-50-11115	ROD	1
1	566-50-11114	ROD	1
1	566-50-11113	ROD	1
1	566-50-11112	ROD	1
2	566-50-11132	RETAINER	1
3	566-50-11290	BUSHING	1
3	566-50-11280	BUSHING	1
4	566-50-11210	SEAL	1
5	566-50-11141	PLATE	1
6	566-50-11152	FLANGE	1
6	566-50-11151	FLANGE	1
7	07043-00108	PLUG	1
8	566-50-11172	RING	1
8	566-50-11171	RING	1
8	566-50-11170	RING	1
9	566-50-11180	BUSHING	1
10	07000-05190	O-RING	1
10	07000-25190	O-RING	1
11	07001-05190	RING	1
12	566-09-31510	PACKING	1
13	01010-51085	BOLT	15
14	01602-21030	WASHER	15
15	566-50-11244	CYLINDER	1
15	566-50-11243	CYLINDER	1
15	566-50-11242	CYLINDER	1
16	566-50-11461	BEARING	1
16	566-50-11460	BEARING	1
17	04065-09030	RING	2
18	566-50-11261	VALVE	1
19	566-50-11271	VALVE	1
	566-50-11301	VALVE ASSEMBLY	1
	566-50-11300	VALVE ASSEMBLY	1
20	566-50-11320	VALVE	1
21	281-50-11721	CORE	1
21	281-50-11720	CORE	1
22	07000-01006	O-RING	1
23	566-50-11340	CAP	1
24	566-50-11350	PACKING	3
25	566-50-11223	COVER	1
25	566-50-11222	COVER	1
25	566-50-11221	COVER	1
26	566-50-11253	COVER	1
26	566-50-11252	COVER	1
26	566-50-11251	COVER	1
27	566-50-11312	COVER	1
27	566-50-11311	COVER	1
27	566-50-11310	COVER	1
27	566-50-11490	RUBBER	1
28	01010-51020	BOLT	8
28	01010-51016	BOLT	8
29	01602-21030	WASHER	8
30	566-50-11481	SEAT	1

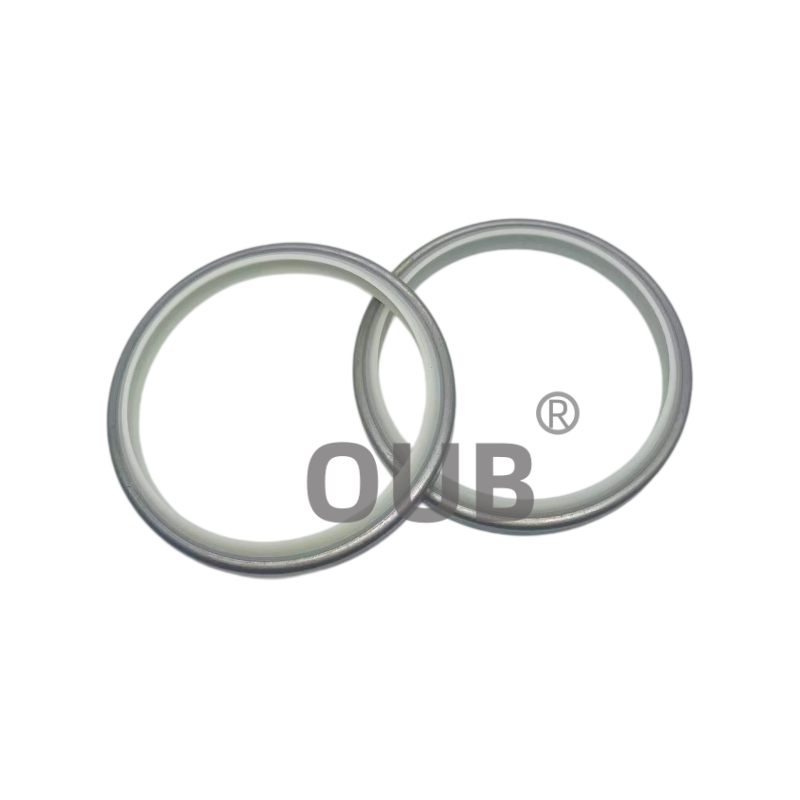

3. 566-50-11210 picture:

566-50-11210 5665011210 SEAL OF HD325-5 HD320-2
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-98-26820	707-98-39611	707-98-67100
707-98-26570	707-98-38520	707-98-64410
707-98-26620	707-98-26600	707-98-38551
707-98-26720	707-98-26580	707-98-38520

5. FAQ

Q: Which construction equipment is dust seal part number 566-50-11210 designed for?
A: The dust seal 566-50-11210 is produced for motor grader hydraulic cylinder maintenance and field replacement.

Q: What materials make up dust seal part 566-50-11210?
A: 566-50-11210 dust seal uses tough polyurethane scraping lip paired with resilient NBR rubber body.

Q: What contaminants can this dust seal block for the motor grader cylinder?
A: It removes road dust, fine gravel and wet mud from piston rod surface before entering cylinder assembly.

Q: Where is this dust seal mounted on the motor grader hydraulic cylinder?
A: It is installed in the gland groove at the outermost port of the hydraulic cylinder piston rod.

Q: What advantage does this dust seal have for road construction jobs?
A: It keeps stable scraping performance under constant vibration generated by the grader cutting blade.

Q: What will happen once this dust seal loses its elasticity?
A: Foreign particles will pass the seal and cause abrasion damage to internal rod seals and metal sliding surfaces.

Q: Can this dust seal be installed without disassembling the whole cylinder?
A: It depends on cylinder structure; full disassembly is normally required to fit it into the gland groove.

6. Exhibition and Wearhous
