566-50-61230 5665061230 SEAL OF HD405-6 HD325-6

Name: 566-50-61230 5665061230 SEAL OF HD405-6 HD325-6
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 566-50-61230
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 566-50-61230

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Dust wiper seal HD405-6, Dust wiper seal HD325-6, Dust wiper seal with warranty


Part No.::	566-50-61230	Model:	HD325-6W
Part Name::	DUST SEAL	Machine:	Motor Grader
Material:	NBR	Color:	WHITE

Part No.::	566-50-61230
Model:	HD325-6W
Part Name::	DUST SEAL
Machine:	Motor Grader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 566-50-61230:

Part NO.	566-50-61230
Machine	Motor Grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 566-50-61230 parts on group :

566-50-61230 5665061230 SEAL OF HD405-6 HD325-6

NO.	PART NO.	PRAT NAME	QTY
1	566-50-62110	CYLINDER	1
2	566-50-62130	ROD	1
3	566-50-11170	RING,WEAR	1
4	566-50-82180	BUSHING	1
4	566-50-11181	BUSHING	1
5	655-50-82150	FLANGE	1
5	566-50-62150	FLANGE	1
6	07001-05190	RING,BACK-UP	1
7	07000-15190	O-RING	1
8	566-50-6A410	PACKING	1
8	566-50-42152	PACKING	1
8	566-50-42151	PACKING	1
8A	707-51-16650	RING	1
9	566-50-62160	RETAINER	1
10	566-50-11280	BUSHING	1
11	566-50-61230	SEAL	1
12	566-50-62120	PLATE	1
13	01011-81000	BOLT	16
13	01010-81085	BOLT	16
14	01643-31032	WASHER	16
15	566-50-11461	BEARING	2
16	04065-09030	RING	4
	561-86-67700	VALVE ASSEMBLY	1
	561-86-67500	VALVE ASSEMBLY	1
17	561-86-67710	VALVE	1
17	561-86-67510	VALVE	1
18	561-86-67520	NIPPLE	1
19	281-50-11721	CORE,VALVE	1
20	07000-51009	O-RING	1
21	07048-01310	PLUG	1
22	566-50-11350	PACKING	1
23	566-50-11301	VALVE ASSEMBLY	1
24	566-50-11350	PACKING	1
25	569-50-6B240	COVER	1
26	103-21-21260	BOSS	2
27	01010-81016	BOLT	2
28	01643-31032	WASHER	2
29	566-50-62190	GUARD	1
30	566-09-6A110	CLAMP	1
30	07281-12709	CLAMP	1

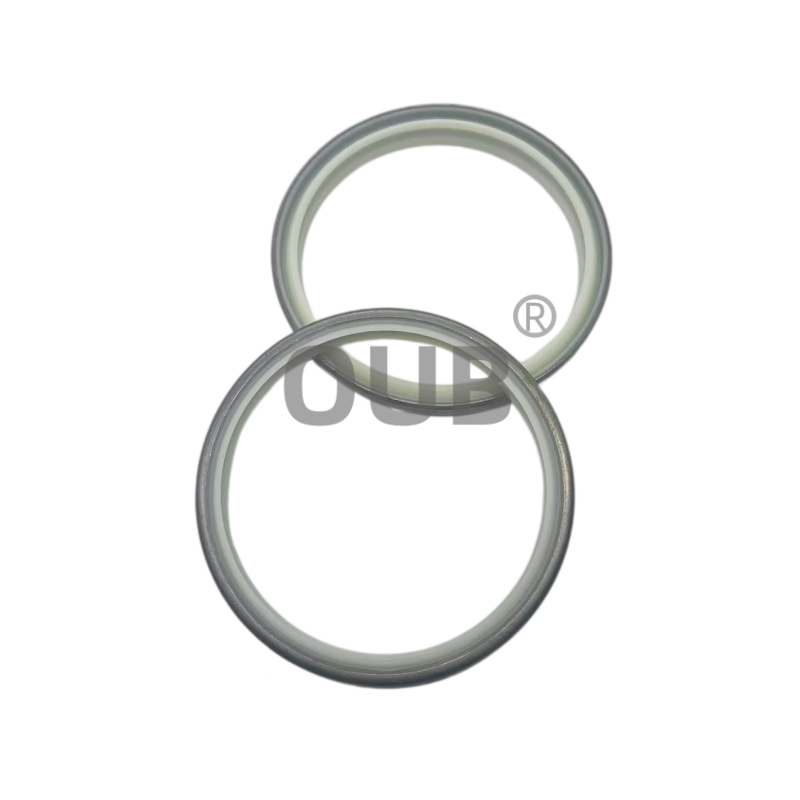

3. 566-50-61230 picture:

566-50-61230 5665061230 SEAL OF HD405-6 HD325-6
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-99-59430	707-99-64250	707-98-67100
707-99-59550	707-99-64400	707-98-38600
707-99-59600	707-99-64410	707-98-39610
707-98-26720	707-98-26820	707-98-39611
707-98-26820	707-98-26900	707-98-39700
707-98-26570	707-98-26620	707-98-38600
707-99-67310	707-99-74450	707-51-75211

5. FAQ

Q: What type of construction machine matches dust seal part number 566-50-61230?
A: The dust seal 566-50-61230 is produced for motor grader hydraulic cylinder field maintenance and replacement.

Q: What raw materials construct dust seal part 566-50-61230?
A: 566-50-61230 dust seal adopts scratch-resistant polyurethane scraping lip and flexible NBR rubber supporting body.

Q: What protective work does this dust seal perform while the motor grader operates?
A: It wipes off fine road dust, sand grains and muddy residues on piston rod to prevent foreign matter entering cylinder.

Q: Where does this dust seal get installed on the motor grader hydraulic cylinder assembly?
A: It is fitted into the gland groove at the outermost side of cylinder where piston rod moves back and forth.

Q: What performance trait makes this dust seal fit road grading working scenarios?
A: It maintains consistent scraping lip tension under recurring vibration from cutting blade lifting and shifting.

Q: What trouble will arise if this dust seal loses its sealing capacity?
A: Abrasive contaminants will pass through and cause scratches on piston rod surface and accelerate inner seal aging.

Q: What information should we confirm before buying this dust seal?
A: It suits specific motor grader cylinder specs, please verify dimension parameters before order confirmation.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
