569-50-61230 5695061230 SEAL,SNAP OF HD405-7 HD405-6

Name: 569-50-61230 5695061230 SEAL,SNAP OF HD405-7 HD405-6
Brand: Guangzhou Opal Machinery Parts Operation Department
SKU: 569-50-61230
Price: 1.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OUB

Certification: ISO9001

Model Number: 569-50-61230

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Packaging Details: PP Bag Inside.outer is carton with film wrapped.

Delivery Time: Within 5-15 days after getting your desposit

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000Pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HD405-7 dust wiper seal, HD405-6 snap seal, dust wiper seal with warranty


Part No.::	569-50-61230	Model:	HD325-6
Part Name::	DUST SEAL	Machine:	Motor Grader
Material:	NBR	Color:	WHITE

Part No.::	569-50-61230
Model:	HD325-6
Part Name::	DUST SEAL
Machine:	Motor Grader
Material:	NBR
Color:	WHITE

Product Description

1. Quick Details of seal 569-50-61230:

Part NO.	569-50-61230
Machine	Motor Grader
Size	OEM
Material	NBR
Oil seal type	WIPER SEAL

2. 569-50-61230 parts on group :

569-50-61230 5695061230 SEAL,SNAP OF HD405-7 HD405-6

NO.	PART NO.	PRAT NAME	QTY
1	566-50-42120	CYLINDER	1
2	566-50-11461	BEARING	1
3	04065-09030	RING,SNAP	2
4	566-50-11152	FLANGE	1
5	07043-00108	PLUG	1
6	566-50-11180	BUSHING	1
7	566-50-42151	PACKING	1
	566-50-42150	PACKING	1
	566-09-31511	PACKING	1
8	566-50-11133	RETAINER	1
	566-50-11132	RETAINER	1
9	566-50-11280	BUSHING	1
10	569-50-61230	SEAL	1
	566-50-11210	SEAL	1
11	566-50-11141	PLATE	1
12	01010-51085	BOLT	15
13	01643-31032	WASHER	15
14	566-50-21260	VALVE	1
	566-50-11262	VALVE	1
	566-50-11261	VALVE	1
15	566-50-11350	PACKING	1
16	07000-15190	O-RING	1
17	07001-05190	RING,BACK-UP	1
18	566-50-42110	ROD	1
19	566-50-11461	BEARING	1
20	04065-09030	RING,SNAP	2
21	566-50-11170	RING,WEAR	1
22	566-50-11271	VALVE	1
23	566-50-11350	PACKING	1
	566-50-11301	VALVE ASSEMBLY	1
24	566-50-11320	VALVE	1
25	281-50-11721	CORE	1
26	566-50-11340	CAP	1
27	07000-01006	O-RING	1
28	566-50-11350	PACKING	1
29	566-50-41221	COVER	1
	566-50-41220	COVER	1
30	566-50-11312	COVER	1
31	01010-51020	BOLT	2
32	01643-51032	WASHER	2
33	07000-05145	O-RING	1
	566-50-11481	SEAT	1
34	01010-51020	BOLT	3
35	01643-51032	WASHER	6
	01643-51032	WASHER	3
36	566-50-41310	PLATE,LEVEL	1

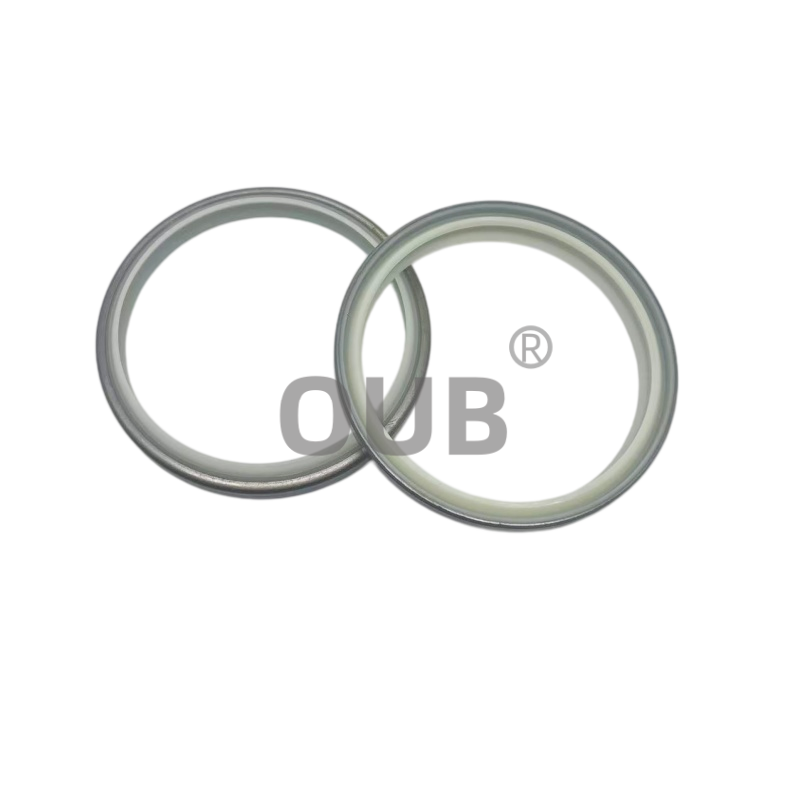

3. 569-50-61230 picture:

569-50-61230 5695061230 SEAL,SNAP OF HD405-7 HD405-6
4. Service part number :

PART NO.	PART NO.	Part NO.
707-99-67760	707-98-39610	707-98-62120
707-99-59430	707-99-64250	707-98-67100
707-99-59550	707-99-64400	707-98-38600
707-99-59600	707-99-64410	707-99-46390
707-98-26720	707-98-26820	707-98-39611
707-98-26820	707-98-26900	707-98-39700
707-98-26570	707-98-26620	707-98-38600
707-99-67310	707-99-74450	707-51-75211

5. FAQ

Q: What construction equipment does dust seal part number 569-50-61230 fit for application?
A: The dust seal 569-50-61230 is designed for motor grader hydraulic cylinder maintenance and on-site component replacement.

Q: What material formula is adopted to produce dust seal part 569-50-61230?
A: 569-50-61230 dust seal is made of high-strength polyurethane scraping lip paired with durable NBR rubber back support.

Q: What unwanted contaminants can this dust seal clear away during grader working cycles?
A: It removes dry road dust, tiny stone fragments and muddy splashes on piston rod before these pollutants enter cylinder assembly.

Q: What is the installation location of this dust seal on the motor grader hydraulic cylinder?
A: It is installed within the gland groove at the outermost port of cylinder where piston rod slides in and out repeatedly.

Q: What performance characteristic makes this dust seal suitable for road grading projects?
A: It maintains steady scraping force even with constant vibration from cutting blade height and angle adjustment.

Q: What will happen once the lip of this dust seal loses its elasticity in operation?
A: Hard particles can pass through the seal and create scratches on piston rod and accelerate ageing of inner rod seals.

Q: What key information should buyers double-check before ordering this dust seal?
A: It is engineered for specific motor grader cylinder specifications, confirm seal dimensions before order submission.

6. Exhibition and Wearhous
