Highlight:
Mechanical Seal D275AX-5-KO
, O Ring Seal WA1200-3
, High Quality Mechanical Seal
1. Quick Details of seal 07000-75355 :
| Part NO. |
07000-75355 |
| Machine |
Wheel Loader |
| Size |
OEM |
| Material |
SILICON |
| Oil seal type |
OIL SEAL |
2. 07000-75355 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
42C-13-10003 |
TORQFLOW ASSEMBLY |
1 |
| 2 |
42C-13-10002 |
TORQFLOW ASSEMBLY |
1 |
| 3 |
42C-13-11003 |
CONVERTER ASSEMBLY |
1 |
| 4 |
42C-13-11002 |
CONVERTER ASSEMBLY |
1 |
| 5 |
42C-13-17111 |
CASE |
1 |
| 6 |
42C-13-17110 |
CASE |
1 |
| 7 |
01252-71230 |
BOLT |
2 |
| 8 |
01643-31232 |
WASHER |
2 |
| 9 |
01010-81245 |
BOLT |
10 |
| 10 |
01643-31232 |
WASHER |
10 |
| 11 |
07000-72115 |
O-RING (K1) |
1 |
| 12 |
07000-72018 |
O-RING (K1) |
4 |
| 13 |
07043-70312 |
PLUG |
3 |
| 14 |
07000-75160 |
O-RING (K1) |
1 |
| 15 |
42C-13-17360 |
BEARING |
1 |
| 16 |
06040-06020 |
BEARING |
1 |
| 17 |
42C-13-17120 |
COVER |
1 |
| 18 |
06040-06938 |
BEARING |
1 |
| 19 |
04070-00190 |
RING |
1 |
| 20 |
04071-00260 |
RING |
1 |
| 21 |
07000-75375 |
O-RING (K1) |
1 |
| 22 |
07000-72115 |
O-RING (K1) |
1 |
| 23 |
07000-75355 |
O-RING (K1) |
1 |
| 24 |
42C-13-00010 |
CAGE ASSEMBLY |
1 |
| 25 |
07043-70211 |
PLUG |
2 |
| 26 |
04077-00110 |
RING |
1 |
| 27 |
42C-13-17140 |
BUSHING |
1 |
| 28 |
04260-00635 |
BALL |
1 |
| 29 |
01010-81235 |
BOLT |
4 |
| 30 |
01643-31232 |
WASHER |
4 |

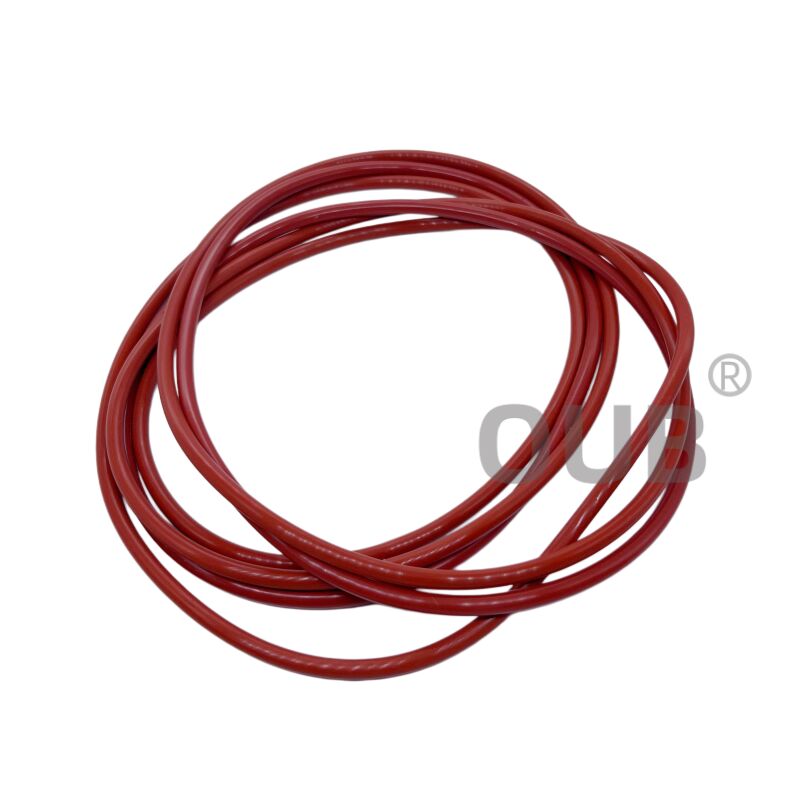

3.07000-75465 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-35-91060 |
707-51-45640 |
707-51-80630 |
| 707-35-52660 |
707-51-14640 |
707-51-80640 |
| 707-35-52670 |
707-51-14850 |
707-51-11640 |
| 707-35-52690 |
707-51-14650 |
707-51-11650 |
| 707-35-52700 |
56B-50-34650 |
707-51-11690 |
| 707-35-52740 |
707-51-16650 |
707-51-12630 |
| 707-35-52750 |
707-51-16630 |
707-51-12640 |
| 707-35-52760 |
707-51-16640 |
707-51-12650 |
| 707-35-52770 |
707-51-16850 |
707-44-10911 |
| 707-35-52780 |
707-51-17630 |
707-44-11080 |
| 707-35-52830 |
707-51-17640 |
707-44-11150 |
| 707-35-52860 |
707-51-18640 |
707-44-11180 |
| 707-35-52880 |
707-51-19640 |
707-44-11250 |
| 707-35-52900 |
707-44-11250 |
707-44-10280 |
5. FAQ
Q: What material is this red O-ring typically made of?
A: The red color most commonly indicates silicone rubber (VMQ). Depending on the application, it may also be a fluorosilicone (FVMQ) or high-temperature NBR variant, but silicone is the standard material for red O-rings.
Q: What is this O-ring and what does it do?
A: This is an elastomeric O-ring, a precision sealing component used in both static and dynamic applications to prevent fluid or gas leaks between mating parts. It maintains pressure integrity and keeps contaminants out of hydraulic systems, pumps, engines, and other industrial equipment.
Q: What are the key properties of silicone rubber for this seal?
A: Silicone offers excellent heat resistance (operating range roughly -60°C to +200°C), great flexibility even at low temperatures, and strong resistance to ozone, weathering, and aging. It works well with hot air, steam, and non-polar fluids, though it is not recommended for use with most mineral oils or fuels.
Q: How do I install this O-ring correctly?
A: Start by thoroughly cleaning the O-ring groove and mating surfaces to remove dirt, burrs, or old seal residue. Lightly lubricate the O-ring with a compatible fluid or grease to ease installation. Carefully fit the seal into the groove, making sure it does not twist, overstretch, or get pinched. When assembling components, use proper tools to avoid damaging the seal edges.
Q: What common issues cause O-ring failure?
A: Common causes include improper installation (twisting, pinching, or overstretching), chemical incompatibility with the fluid, excessive heat or cold leading to hardening or brittleness, surface scratches on mating parts, and using the wrong size or durometer.
Q: How do I install this oil seal correctly?
A: Clean the housing bore and shaft thoroughly, lubricate the seal lip and shaft with compatible oil, align the seal with the bore, and press it evenly using a seal driver until it sits flush, taking care not to damage the lip or tilt the seal.
