714-07-05100 7140705100 Hydraulic Breaker Gasket Kit NBR Fiber Steel for Hammer Cylinder Complete Repair WA450-3-H WA450-3A-TN

1. Quick Details of  seal 714-07-05100:

2. 714-07-05100 parts on group :

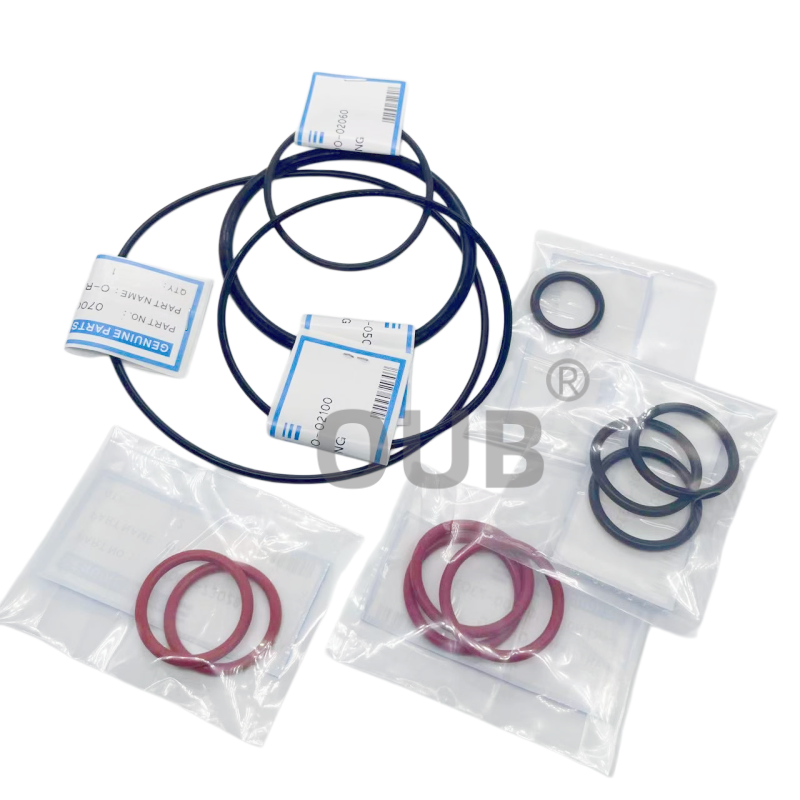

3. 714-07-05100 picture:

4. Service part number :

5. FAQ

Q: What specific hydraulic breaker models does 714-07-05100 gasket kit fit, and which key components does it cover?
A: This all-in-one gasket kit is engineered for heavy-duty hydraulic breakers attached to excavators, specifically matching Komatsu’s HB250, HB350, HB450 series and other equivalent medium-to-large hammer models. It covers the entire overhaul sealing system of the breaker, including the main cylinder body, front head, back head, accumulator, and valve housing mating surfaces. Unlike standard partial kits, it includes every necessary gasket, O-ring, metal shim, and anti-leak washer for a complete teardown and rebuild. It’s also compatible with aftermarket breakers of the same size class, making it a versatile solution for rock breaking, demolition, and quarrying operations.

Q: Could you detail the material composition of each component in the kit and their unique performance advantages?
A: Each part is made with application-specific materials to withstand the breaker’s extreme working conditions. Main gaskets use compressed asbestos-free fiber bonded with nitrile rubber—this composite material offers exceptional resistance to hydraulic oil, high compression, and severe vibration, preventing blowout even under 30MPa impact pressure. O-rings and small seals are NBR80 high-hardness nitrile rubber, which maintains tight elasticity and sealing force under repeated pressure cycles. Galvanized steel core plates provide rigid support, preventing gasket deformation under bolt torque and ensuring precise alignment. FKM fluororubber washers at high-temperature connection points resist heat aging and chemical corrosion, extending service life in harsh environments.

Q: What are the color, shape, and packaging features of this gasket kit? Are there any customization options?
A: The kit features components with distinct visual and structural characteristics. Main fiber gaskets are dark gray with precise laser-cut bolt holes and a slightly textured surface for enhanced grip during installation. NBR80 O-rings are solid black with varying diameters for different ports and grooves. Galvanized steel plates are silver metallic, thin and flat with aligned mounting holes. FKM washers are dark brown with a smooth, heat-resistant sealing face. All parts are neatly organized in a durable, oil-resistant plastic tray inside a labeled cardboard box, with clear markings for part number, compatible models, and material specs. Customization options include low-temperature resistant FKM gaskets for cold regions and anti-corrosion coated steel plates for coastal or chemical sites.

Q4: What is the pressure resistance, temperature tolerance, and typical service life of this gasket kit under different working conditions?
A4: Designed for heavy-duty hydraulic breaker systems, this kit handles a maximum working pressure of 32MPa, exceeding the standard pressure rating of most medium-to-large hammers. It operates reliably in temperatures ranging from -25°C to +120°C, performing well in cold startup scenarios and resisting heat degradation during continuous high-frequency hammering. Under normal daily use (8-hour shifts in standard demolition), the service life averages 3,500–5,000 working hours. In extreme conditions like hard rock quarries or 24/7 operation, it lasts 2,000–3,000 hours—a significant improvement over economy kits due to reinforced fiber-rubber composite gaskets.

6. Exhibition and Wearhous

Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
